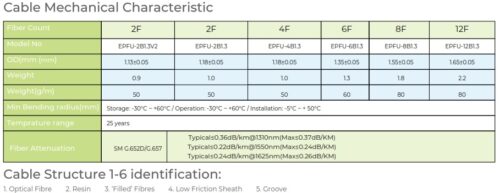

The ABF is the product that with small diameter, light weight, highly ﬂexibility and proper stiffness, and it can be blown into the microduct of 5.0/3.5 mm. The ﬁbres are coated with a soft acrylate resin which provides excellent dimensional and thermal stability to cushion the ﬁbres, in addition, the resin can be easily stripped in connecting the ﬁbres. The outer sheath is thermoplastic that is of low friction. The surface of the sheath is designed with special grooves, compared to the surface of the traditional optical ﬁbre cable, it provides not only the high level of mechanical protection, but also the perfect blowing performance.
Very good mechancial properties and temprature characteristics good hydrolysis resistance and high strength of the loose tubing material itself Tube ﬁlled with special oil paste for critical protection of optical ﬁbres Good resistance to compression and ﬂexibility Double-sided plastic coated steel strip(PSP) improves the cable’s resistance to moisture
Two parallel wires for tensile strength of the cable Small diameter, light weight and easy to lay
Product Applications And Laying Methods
1. Outdoor communication system wiring
2. Pipelay wiring
