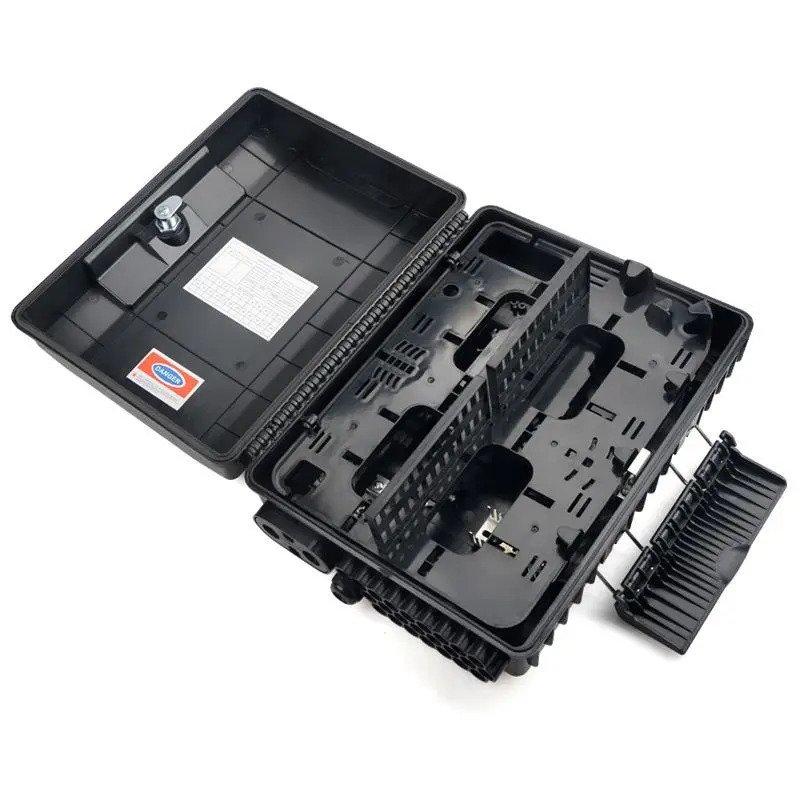

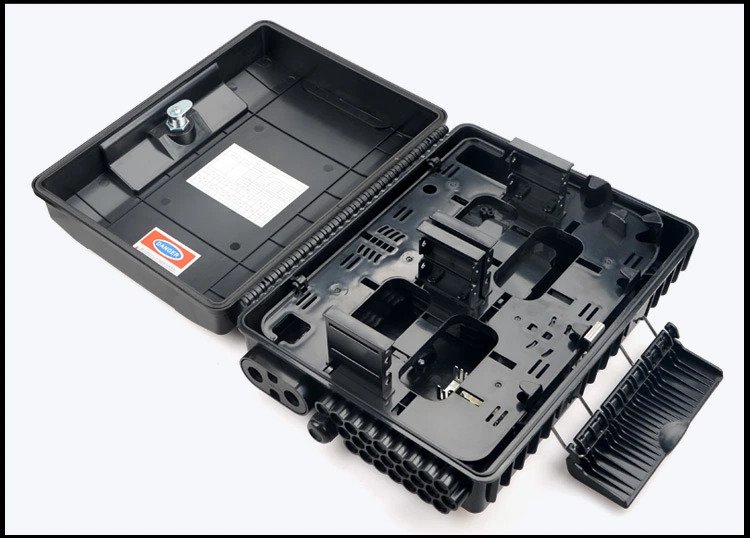

OTB-48C-02

The equipment is widely used as a temination point for the cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building. It can be used for indoor or outdoor.

The equipment is widely used as a temination point for the cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building. It can be used for indoor or outdoor.

Feature:

  1. Total enclosed structure
  2. Material. PC+ABS, wet-proof, dustprof, anti-aging protection level upto IP65
  3. Clamping for fiber cable and drop cable, fiber splicing, fixation, storage and distribution ect all in one.
  4. Cables, Pigtals, Patch Cords are running through own path without disturbing each other, suitable for cassete
    type SC/LC/PLC adaptor installation, easy maintenance.

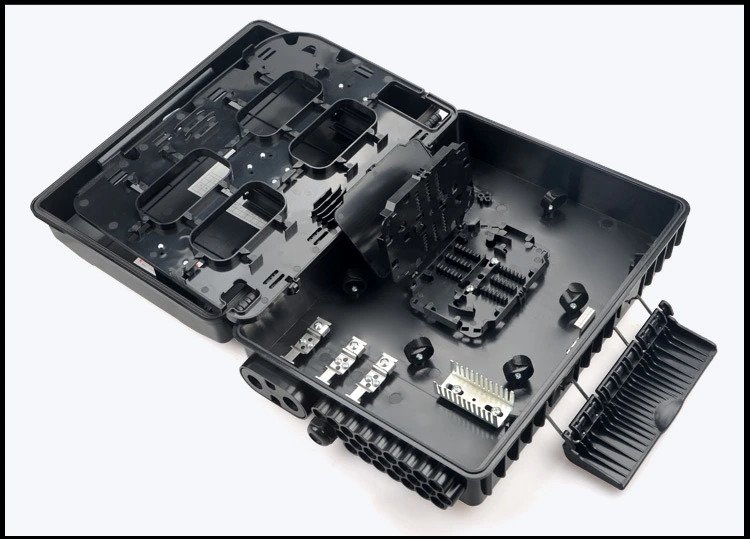

  5. The wiring tray can be turned over for easy and fast construction and maintenance.
  6. Cabinets can be installed by the way of wall-mounted.suitable for both indoor and outdoor.

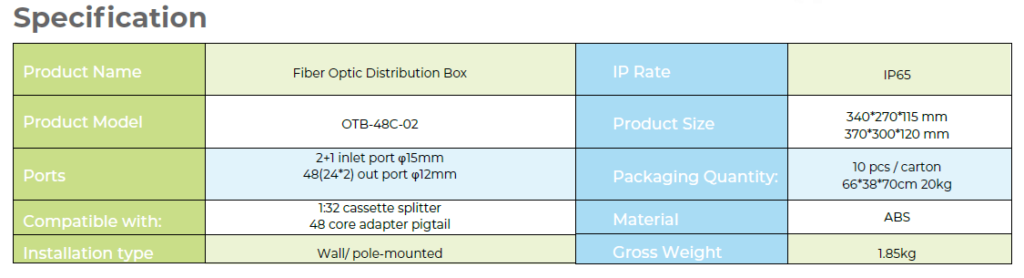

Specification

  1. Enviormental requirement
    Operating temprature: -40°C~+85°C,
    Relatively humidity:85%(+30°C)
    Atmospheric pressure: 70KPa-106pa
  2. Main technical datasheet
    Insertion loss:0.2dB
    UPC return loss:250dB
    APC return loss:60dB
    Life of insertion and extraction > 1000 times
  3. Thunder-proof technical datasheet
    The grounding device is isolation with the cabinet.Isolation resistance is less than 2×10^4M500V(DC),
    IR2×10^4 M/500V
    The wistand voltage between grounding device and cabinet is no less than 3000V(DC)/min,no, no flashover;
    U3000V
