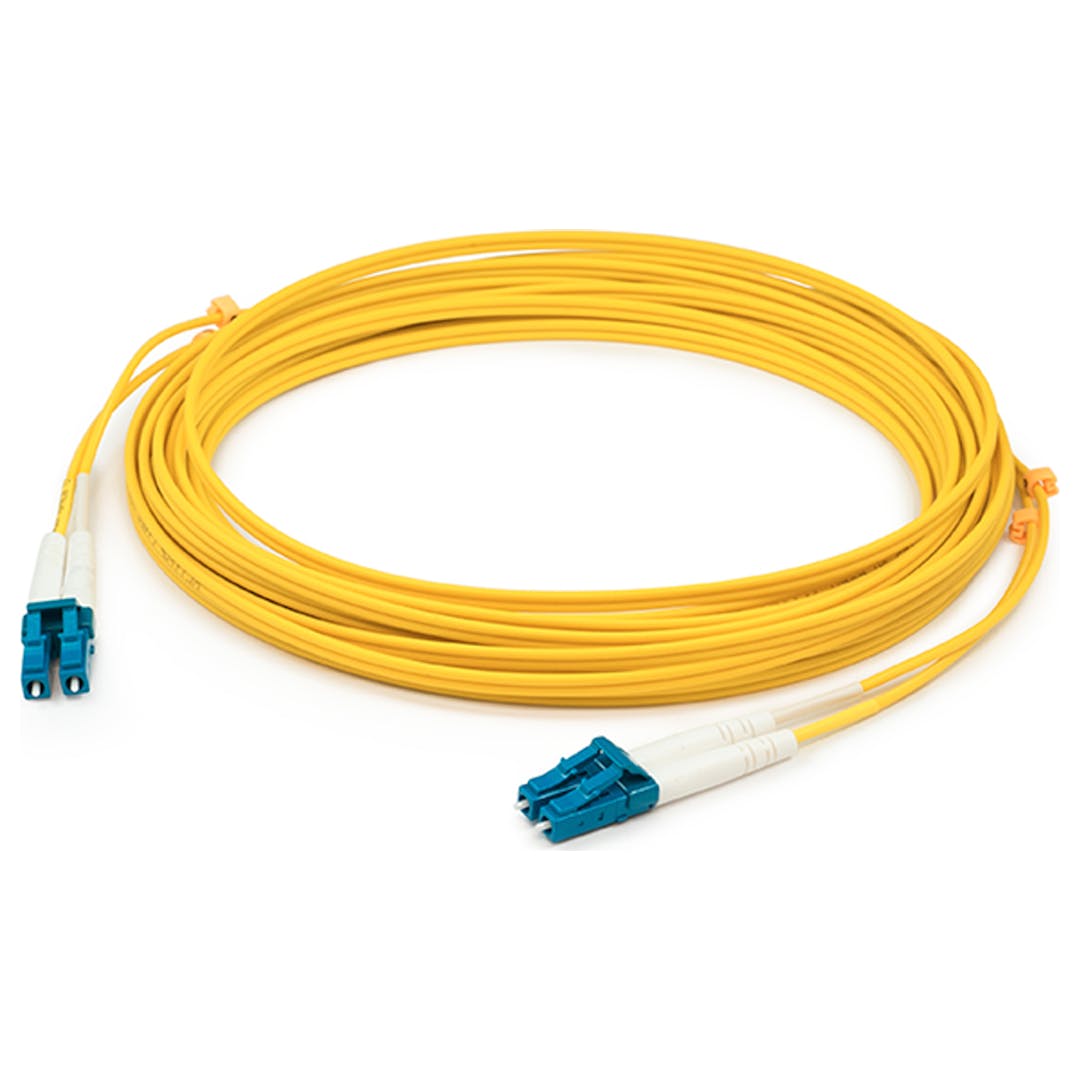

Designed for Data Center, Enterprise, FTTx, LAN and WAN, CATV network, telecom network applications , etc. requiring quick infrastructure deployment such as main, horizontal, and zone distribution areas. Fiber optic patch cables are ideal for supporting high speed telecommunication network fiber applications. They are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types are available to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination is through rigorous parameter test to ensure the highest network performance.
Standards Compliance
• RoHS, ISO 9001, CE, REACH, WEEE Compliant
• TIA 604 (FOCIS)
• TIA/EIA 492AAAE
• IEC 61754
• IEC 60793-2-10
• IEC 61300-3-35
• YD/T1272.1-2003
| Physical Characteristics | Description |
| Connector Types | LC/SC/ST/FC/LSH/MTRJ/MU with Standard Boots; LC 12mm/18mm with Short Boots; SC 25mm with Short Boots |
| Polish Type | SMF: UPC-UPC; UPC-APC; APC-APC; MMF: UPC-UPC |
| Connector Ferrule | Zirconia Ceramic |
| Cable Outside Diameter | Duplex: 1.6/2.0/3.0mm, Simplex: 0.9/2.0/3.0mm |
| Interchangeability | ≤0.2dB |
| Vibration | ≤0.2dB |
| Mechanical Characteristics | Description |
| Fiber Type | Standard Boots: OS2/OM5/OM4/OM3/OM2/OM1; Short Boots: OS2/OM4/OM3 |
| Fiber Count | Duplex/Simplex |
| Cable Jacket | PVC (Riser/OFNR)/LSZH/Plenum (OFNP) |
| Fiber Grade | SMF: G.657.A1/G.657.A2; Fiber Grade OM5/OM4/OM3/OM2: Bend Insensitive; OM1: G.651 |
| Fiber Mode | Connector Type | Connector | Jacket Color |
|
OS2
|
LC SC |
Blue/Green Black |
Yellow
|
|
OM1/OM2
|
LC
SC ST |
Beige Black |
Orange
|
|
OM3
|
LC
SC ST |
Beige/Aqua Aqua Black |
Aqua
|
|
OM4
|
LC
SC |
Beige/Magenta Beige |
Aqua/Magenta Aqua |
|
OM5
|
LC
|
Beige
|
Lime Green
|
| Minimum Bend Radius | SMF | MMF | |
| Fiber Cable (Dynamic/Static) |
OD 2.0/3.0mm | 10/5D | 20/10D |
| OD 1.6mm | 10/5D | ||
| OD 0.9mm | 10mm | OM1: 15mm Others: 7.5mm |
|
| Fiber Core | OD 0.9/2.0/3.0mm | G.657.A1: 10mm G.657.A2: 7.5mm |
OM1: 15mm Others: 7.5mm |
| OD 1.6mm | G.657.A1: 10mm | ||
| Tensile Strength (Long Term/Short Term) |
Duplex | Simplex |
|
OD 3.0mm
|
120/225N
|
80/150N
|
|
OD 2.0mm
|
90/150N
|
60/100N
|
|
OD 1.6mm
|
90/150N
|
|
|
OD 0.9mm
|
3/6N
|
| Optical Characteristics | Description |
| Connector Insertion Loss | LC/SC/ST/FC/LSH/MU/MTRJ≤0.3dB |
| Connector Return Loss | SMF: UPC≥50, APC≥60 (LC/SC/ST/FC/MU/MTRJ), UPC≥55, APC≥75 (LSH) MMF: UPC≥30 (LC/SC/ST/FC/LSH/MU), UPC≥35 (MTRJ) |
| Attenuation at 1310nm | G.657.A1: 0.36dB/km G.657.A2: 0.4dB/km |
| Attenuation at 1550nm | G.657.A1: 0.22dB/km G.657.A2: 0.25dB/km |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
| Environmental Characteristics | Description |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -40~80℃ |
|
Data Rate
|
Interface Type
|
Fiber Mode
|
Wavelength
|
Maximum Distance
|
|
1G
|
1000BASE-LX
|
OM5
|
850nm
|
550m
|
|
OM4
|
1300nm
|
550m
|
||
|
OM3
|
1300nm
|
550m
|
||
|
OM2
|
1300nm
|
550m
|
||
|
OM1
|
1300nm
|
550m
|
||
|
SMF
|
1310nm
|
10km
|
||
|
1000BASE-LX
|
OM4
|
850nm
|
550m
|
|
|
OM3
|
850nm
|
550m
|
||
|
OM2
|
850nm
|
550m
|
||
|
OM1
|
850nm
|
275m
|
||
|
10G
|
10GBASE-SR
|
OM4
|
850nm
|
400m
|
|
OM3
|
850nm
|
300m
|
||
|
OM2
|
850nm
|
82m
|
||
|
OM1
|
850nm
|
33m
|
||
|
10GBASE-SR
|
OM5
|
850nm
|
220m
|
|
|
OM3
|
1300nm
|
220m
|
||
|
OM2
|
1300nm
|
220m
|
||
|
OM1
|
1300nm
|
220m
|
||
|
10GBASE-SR
|
SMF
|
1310nm
|
10km
|
|
|
10GBASE-SR
|
SMF
|
1550nm
|
30-40km
|
|
|
10GBASE-SR
|
SMF
|
1550nm
|
80-100km
|
|
|
40G
|
40G-BIDI
|
OM5
|
850nm
|
200m
|
|
OM4
|
850nm
|
150m
|
||
|
OM3
|
850nm
|
100m
|
||
|
40GBASE-SR4
|
OM5
|
850nm
|
150m
|
|
|
OM4
|
850nm
|
150m
|
||
|
OM3
|
850nm
|
100m
|
||
|
40G-SWDM4
|
OM5
|
850nm
|
440m
|
|
|
OM4
|
850nm
|
350m
|
||
|
OM3
|
850nm
|
240m
|
||
|
40GBASE-LR4
|
SMF
|
1550nm
|
10km
|
|
|
100G
|
100GBASE-SR4
|
OM5
|
850nm
|
100m
|
|
OM4
|
850nm
|
100m
|
||
|
OM3
|
850nm
|
70m
|
||
|
100G-SWDM4
|
OM5
|
850nm
|
150m
|
|
|
OM4
|
850nm
|
100m
|
||
|
OM3
|
850nm
|
75m
|
||
|
100GBASE-SR10
|
OM4
|
850nm
|
125m
|
|
|
OM3
|
850nm
|
100m
|
||
|
100GBASE-LR4
|
SMF
|
1310nm
|
10km
|
|
|
100GBASE-ER4
|
SMF
|
1310nm
|
40km
|
| Cable Length | Duplex/Simplex | Multifiber |
| L≤0.5m | +5cm/-0cm | +8cm/-0cm |
| 0.5m＜L≤5m | +10cm/-0cm | +12cm/-0cm |
| 5m＜L≤10m | +15cm/-0cm | +15cm/-0cm |
| 10m＜L≤30m | +20cm/-0cm | +20cm/-0cm |
| 30m＜L≤100 | +1%m/-0cm | +1%m/-0cm |
| L＞100m | +1.5%m/-0cm | +1.5%m/-0cm |
Product Specification Data Sheet : Download Here
