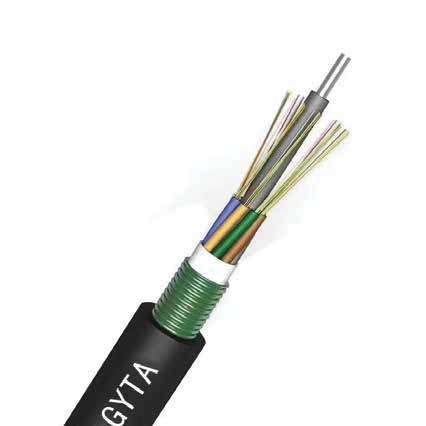

Product Description

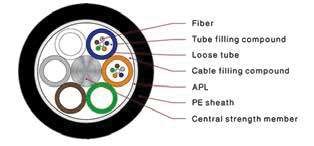

GYTA fibre optic cables are constructed with a 250um fibre optic fibres cable in a high modulus material pine tube, which is filled with a waterproof compound.At the centre
of the core is a metal reinforcement core, which for some cores is also extruded with a layer of polyethylene (PE). The loose sleeving (and filler rope) is twisted around the
central reinforcement to form a compact and rounded core with gaps filled with a water blocking filler. Plastic coated aluminium tape (APL) wrapped longitudinally and then extruded with a polyethylene sheath.
Product Characteristics
Very good mechanical properties and temprature characteristics The loose tube material itself has good hydrolysis resistance and high strength The tube is filled with a special oil paste, which provides critical protection for the optical fibres specially designed compact cable construction prevents retraction of the casing PE jacket with high resistance to UV radiation The following measures are used to ensure that the cable is watertight:
– Single steel wire central reinforcement core
– Special waterproofing compounds in the loose sleeves
– Complete core filling
– Plastic coated aluminium tape (APL) moisture barrier
Product Applications And Laying Methods
1. Outdoor communication system wiring
2. Duct and overhead
