Product Description

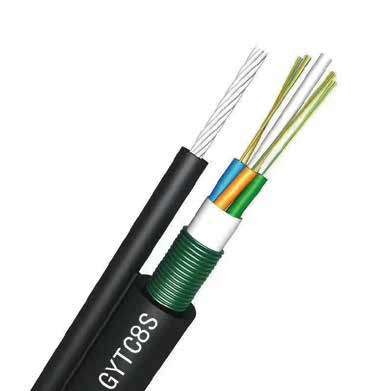

The GYTC8S(A) fibre optic cable are constructed by placing a 250um fibre optic cable in a high modulus material pine tube, which is filled with a waterproof compound. At the
centre of the cable core is a metal reinforcement core, around which the loose tube (and filler rope) is twisted to form a compact and round core.The core is wrapped longitudinally with a layer of plastic coated aluminium tape (APL) / (PSP) and integrated with the wire strands in a polyethylene sheath in the shape of a figure of eight.
Product Characteristics
The high tensile strength of the stranded steel wire facilitates self-supporting overhead laying and reduces installation costs Excellent mechanical properties and temprature
characteristics of the fibre optic cable The loose tubing material itself has good hydrolysis resistance and high strength The tube is filled with a special oil paste,which provides critical protection for the optical fibres The following measures are used to ensure that the fiber optic cable is watertight:
– Single steel wire central reinforcement core
– Special waterproofing compounds in the loose sleeves
– Complete core filling
– Plastic coated aluminium tape (APL) or steel tape (PSP)
moisture barrier
Product Applications And Laying Methods
1. Outdoor communication system wiring
2. Self supportive overhead
